Heat treatment unit RT38-3-M

  • Order goods
  • Description and specifications
Description

Heat treatment unit for welded joints RT38-3-M combines reliability, characteristic for all our products, and compact dimensions, which is necessary when working in closed conditions.

Because of forced cooling using with build-in fans, transformer can be used with smaller power reserve. As a result, transformer has less dimensions and weight, which allows to install in very compact case. Size redusing of unit didn't lead to characteristic degradation of unit, because our company use reliable and time-tested german temperature controllers in another RT-series units; temperature recorders entered in the measuring instruments register of Russia, Kazakhstan and Belarus; other components tested by time and difficult working conditions.

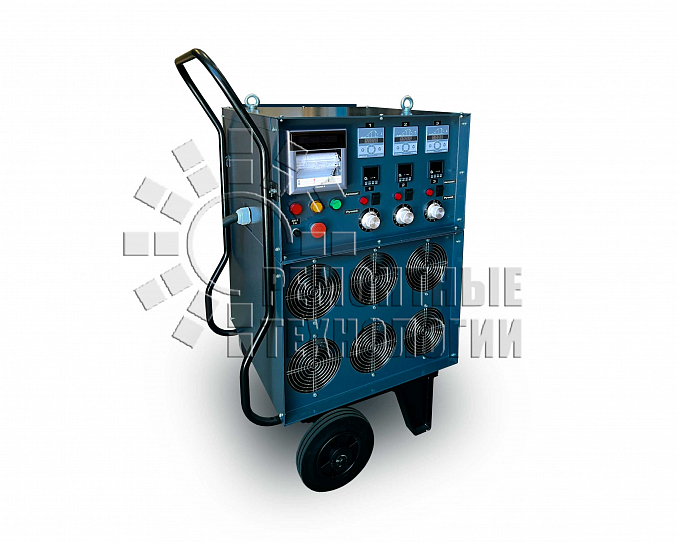

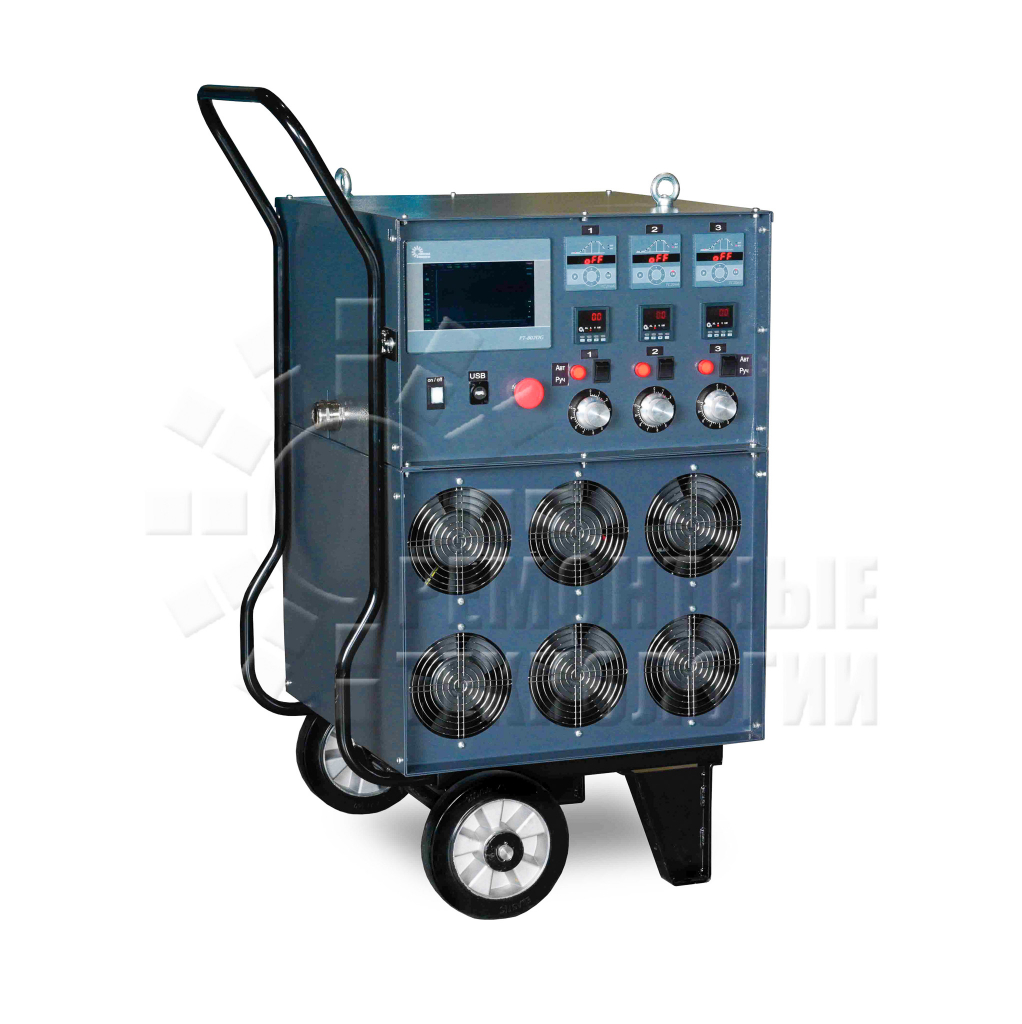

Post-welded heat treatment unit RT38-3-M

Specifications
Power, kW
38
Primary voltage, V
380 (3 phases)
Maximum primary current, A
540
Cycle time, %
100
Secondary voltage, V
60
Temperature control
Single-channel PID controllers
Temperature registration
6-channel electronic recorder with recording on 100 mm chart paper
Number of heaters
4 pcs.: 60 V, 2.7 kW on each channel
Weight, kg
250
Number of channels
3
Transformer
Forced air cooling
Working voltage (secondary winding)
0 - 30 - 60 V
Dimensions LxWxH, mm
570х720х1030
Order code Description Add to Cart
750020-М Heat treatment unit RT38-3М
